HelloDevice Super Series

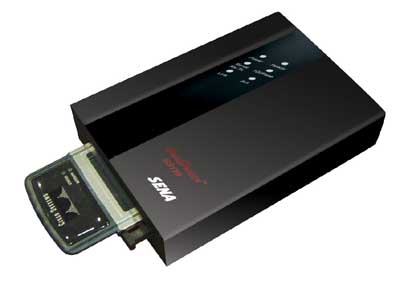

SS110 Wireless-enabled Single-port Secure Device Server (Click to enlarge)	SS400/800 Universal 4/8- port serial-Ethernet communication device (Click to enlarge)	SS100 Universal Single-port serial-Ethernet communication device

Features

Connects legacy serial devices to 10/100Base Ethernet network
Supports RS232/422/485 based serial devices, up to 230Kbps speed
Supports PC cards such as ATA memory, modem and wired/wireless LAN card.
Flexible TCP/UDP host mode support: Multiple host connection/data transfer.
Powerful security support, SSL(Secure Socket Layer), RC4 and 3DES.
Easy-To-Use customization support: User space, Library and Scripts (network/port access).
System logging & port buffering.
Dynamic DNS and PPPoE protocol for DSL connection to broadband Internet.
Configuration via Web, Telnet/SSH or serial port.
Management software for configuration and administration included.

Quick Links
SS110,SS400,SS800

	SS110	SS400	SS800
Serial Interface	1-port DB9	4-port RJ45	8-port RJ45
	Serial speeds: 1200bps to 230Kbps
	Flow Control: Hardware RTS/CTS
	Signals: RS232: Rx, Tx, RTS, CTS, DTR, DSR, GND RS422: Rx+, Rx-, Tx+, Tx- RS485: Data+, Data-
Network Interface	10Base-T/100Base Ethernet with RJ45 Ethernet connector
Network Interface	Supports static and dynamic IP address
Protocols	ARP, IP/ICMP TCP/IP, UDP Telnet DNS, Dynamic DNS HTTP, SMTP, FTP server DHCP client PPPoE SNMP
PCMCIA	ATA storage card 802.11b Wireless LAN card Modem card
Security	User ID & Password
	HTTPS
	Data Encryption: SSL
	IP address Filtering
Modem emulation	Full support for AT commands
Management	Management Tools: Web Telnet Serial console port HelloDevice Manager SNMP
	System log and statistics: Error log storage up to 100 messages Automatic email delivery of error log Full-featured system status display support
	Firmware: Stored in Flash memory Downloadable from serial console or telnet
Diagnosic LED	Power Ready 10/100 Base: Link, Act Serial: Rx, Tx for each port
Power
Power	9~30VDC1A @ 7.5V	5VDC1.5A @ 5V
Environmental	Operating temperature: 5° to 50°C
Environmental	Storage temperature: -40° to 66°C
Physical Properties	Size (mm): 130L x 85W x 25H	Size (mm): 245L x 153W x 30H
Physical Properties	Weight: 300g	Weight: 1.5kg
Approvals	FCC(A), CE(A), MIC
Warranty	5-year Limited Warranty

Model	Description
SS100	Wireless-enabled Single-port Secure Device Server Available in 2003 Q2
SS400	Wireless-enabled 4-port Secure Device Server Available in 2003 Q2
SS800	Wireless-enabled 8-port Secure Device Server Available in 2003 Q2
	SS110/400/800/1600 includes: Quick installation guide CD-ROM Serial console cable Serial data cable External 110V or 230V power supply Mounting kit
SS100	Universal Device Server
SS100B	Universal Serial-Ethernet Communication Board Board only Available in 2002 Q2
