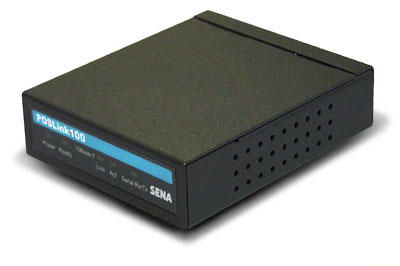

POSLink 100 |

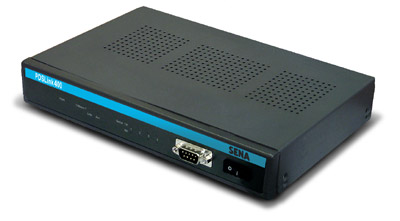

POSLink 400 |

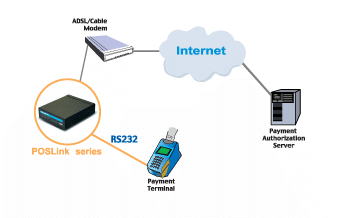

| POS Terminal Interface |
Serial 1-port |
Serial 4-port |
| RJ11 serial port |
| Serial speeds: 1200bps to 19200bps |
| Flow Control: Hardware RTS/CTS |
| Signals: Rx, Tx, RTS, CTS, DTR, DSR, GND |
| Network
Interface |
10 Base-T Ethernet with RJ45 Ethernet
connector |
| Supports static and dynamic IP address |
| Protocols |
ARP, IP/ICMP
TCP, UDP
Telnet
DHCP client
PPPoE
|
| Security |
User ID & Password |
| Data Encryption: SSL |
| Management |
Management Tools:
|
| Firmware: Stored in Flash memory and
downloadable via serial console or telnet |
| Indicator |
- Power
- Ready
- 10 Base-T: Link, Act
- Serial: Rx, Tx for each serial port
|
| Power |
Supply voltage = 7.5V ~ 30V DC |
| Supply current = 140mA (nominal) |
| Environmental |
Operating temperature: 5° to 50°C |
| Storage temperature: -40° to 66°C |
| Physical Properties |
Dimensions:
95 mm L x 80 mm W x 25 mm H
(3.7 in x 3.1 in x 1.0 in) |
Dimensions:
230 mm L x 153 mm W x 30 mm H
(9 in x 6 in x 1.2 in) |
| Weight: 200g |
Weight: 960g |
| Approvals |
FCC(A), CE(A), MIC |
| Warranty |
1-year Limited Warranty |
